Overview

During welding, the welding belt is automatically fed and cut off, and the battery string is automatically received after welding. Our Automatic Steel Pipe Welding Machine has the advantages of fast welding speed, good quality consistency, beautiful surface and no uneven solder by manual welding. Equipment welding can avoid the influence of various human factors during manual welding, such as the influence of operator proficiency, physical condition and emotion, so as to ensure the consistency and reliability of welding.

Our Automatic Steel Pipe Welding Machine can reduce the number of operators and inspectors, reduce management difficulty and product cost. The temperature transmitted to the interface increases through the friction between the workpiece surface and internal molecules. When the temperature reaches the melting point of the workpiece itself, the workpiece interface melts rapidly, and then fills the gap between the interfaces. When the vibration stops, the workpiece is cooled and shaped under a certain pressure to achieve perfect welding.

Features

The Automatic Steel Pipe Welding Machine uses a clip-on fixture, which makes the welding installation convenient and reliable. The head welding machine part has circulating water cooling, which greatly improves the duty cycle. It has automatic arc length and yaw function, which can reduce manual interference. It is suitable for pipes with a wall thickness of 3-10mm. And it has a V-shaped groove and is welded on one side and formed on both sides. It adopts imported core components and materials, which are durable, reliable, safe and precise.

Configuration
1	Decoiler
2	Shear and butt welder
3	Horizontal type strip accumulator
4	Forming unit
5	High-frequency welder
6	Outer burr removing equipment
7	Air cooling system
8	Sizing unit
9	Tukey head ( straightener )
10	Computer controlled flying saw
11	Run-out table

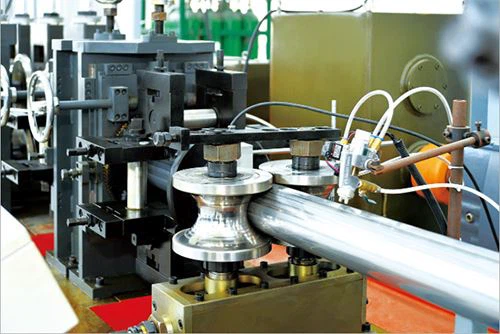

tube mill

Model	Diameter of welded tube(mm)	Wall thickness of welded tube(mm)	Speed of tube welding(m/min)	Power of main motor(kw)	High frequency power(kw)
MG16	8-25	0.25-1.0	30-100	30	60
MG25	8-32	0.35-1.3	30-100	45	100
MG32	13-50.8	0.5-2.0	30-90	110	150
MG50	20-63.5	0.6-2.5	30-90	160	200
MG60	25-63.5	0.8-3.0	20-80	185	250
MG76	25-80	1.2-4.0	20-70	200	300
MG90	32-90	1.5-4.5	20-60	110x2	400
MG115	38-115	2.0-5.0	20-60	160x2	400
MG165	80-165	2.0-6.0	15-50	200x2	500
MG219	90-219	3.0-8.0	15-50	250x2	600
MG273	185-273	4.0-10.0	15-40	250x1 185x2	800
MG300	165-355	4.0-12.0	15-30	250x2 200x2	1200

Tube Mill Machine Line=>Cold Rolling Mill=>Tube Mill Components
