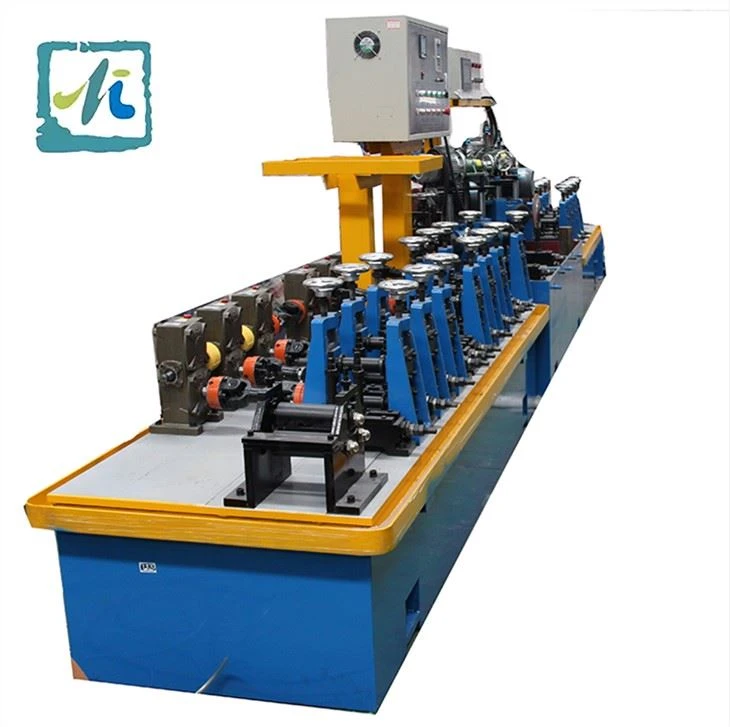

Pipe Mill Machine

Main Technical Parameters of ERW Pipe Mill For Sale(For reference only,will be as requests)

A: suitable strip coils

1.Suitable material: Carbon steel coil;Alloy Steel Coil; API5LX42-X80

(For reference only, will be as requests)

2. Suitable strip width range: 13mm-350mm

3.Wall Thickness: 0.2mm-8mm

B.Finished products

1.Pipe 0.D. φ7mm-φ280mm

2.Thickness: 0.2mm-5mm

3.Square tube:6mmx6mm-68mmx68mm, thickness: 0.3mm-5mmLength: 6m-12m

Length tolerance:+/-1.5mm

c.Equipment data (for reference only)Production speed: 20-120m/min

 Steel Tube Mill, Pipe Mill N.B. Series (Normal Bore OR Inside Diameter) Stainless steel tube mill N.B. Series is called Stainless Steel Tube Mill N.B. Series because it uses Stainless Steel Coil for manufacturing of Tube/Pipe. The Tubes/Pipes made in this machine basically uses cold roll forming technology to give desired shape to the raw material strip. The strip grade can be 200, 300, 400 series. The roll formed open section of the strip is welded longitudinal by TIG welding process or in High Speed by Solid State High Frequency Induction Welder. Then the Welded Pipe/Tube seam is finished on line by tool or grinding process. The Pipe/Tube is then cooled down by coolant water. The Sizing section of the Tube/Pipe Mill shapes the Tube/Pipe for desired perfect shape. Shapes of the Tube/Pipe made by this machine depends on the desire of the customer. Machine has the capacity to make different shapes of pipe like Round/Circular, Rectangular as well as Square. There is a cutting section in the machine which is used to slice the Pipe/Tube. The cutting section cuts the pipe/tube for desired length online by automatic cutting car. The run out table takes out the cut length pipe/tube in the collection pit. After all these process the manufactured products are taken out in the market for desired use.Buy steel Tube Mill, Pipe Mill Now contact mivi
